Gene-8C

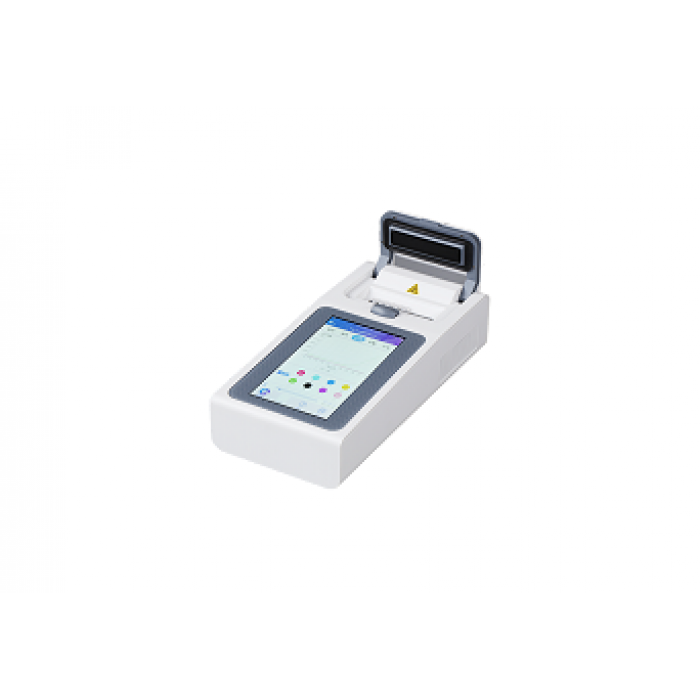

Isothermal Fluorescence PCR — Gene-8C

Allsheng isothermal fluorescence PCR is mainly used for sample isothermal amplification and fluorescence real-time detection, it widely used in rapid detection of pathogenic microorganisms(including viruses, bacteria, mycoplasma fungi and parasites etc.), sanitary inspection of foodstuffs and environmental monitoring, meanwhile, it also can be used in sex identification of animal embryos, as well as genetically modified food(GMF) detection. User-friendly operation system can make results directly interpreted, APP mobile software makes real-time detection come true while the built-in battery design makes the outdoor use possible.





• Model

Gene-8C

• Sample type

0.2 flat/dome single tube & 8*0.2 strip tube

• Reaction system

10-150 μL (Recommended 20-30 μL)

• Dye

FAM/SYBR GreenⅠ, HEX/VIC/JOE etc.

• Temp. Range (℃)

Ambient -99 ℃

• Max heating speed (℃)

2 ℃/s

• Max coolinig speed (℃)

2 ℃/s

• Temp. uniformity (℃)

±0.15 ℃

• Temp. control accuracy (℃)/precision (℃)

±0.1 ℃ / 0.1 ℃

• Thermo lid function

Yes

• Channel

Single

• Excitation wavelength

F1: 470/30 nm

• Detection wavelength

F1: 525/20 nm

• Excitation light source/detection mode

LED/real-time fluorescent signal detection

• Result display

1. Positive/Negative 2. Peak time 3. Anneal Tm value

• Interpretation method

1. Interpretated by amplification plot 2. Interpretated by instrument automatically

• Display

7 inch touch screen

• Software

Embedded software, mobile APP, PC software (Android system)

• Input power

100～240 V，50～60 Hz

• Storage battery

Chargeable battery (optional)

• Dimension (W×D×H) mm

145×305×100 mm

• Weight (without battery)

2.5 kg
